cabinet
the plywood cabinet
The pinball cabinet was cut out of 3/4-inch plywood to be simular to the orignal Bally/Williams style widebody. Plans for this style of cabinet can be found in the Pinscape Build Guide.

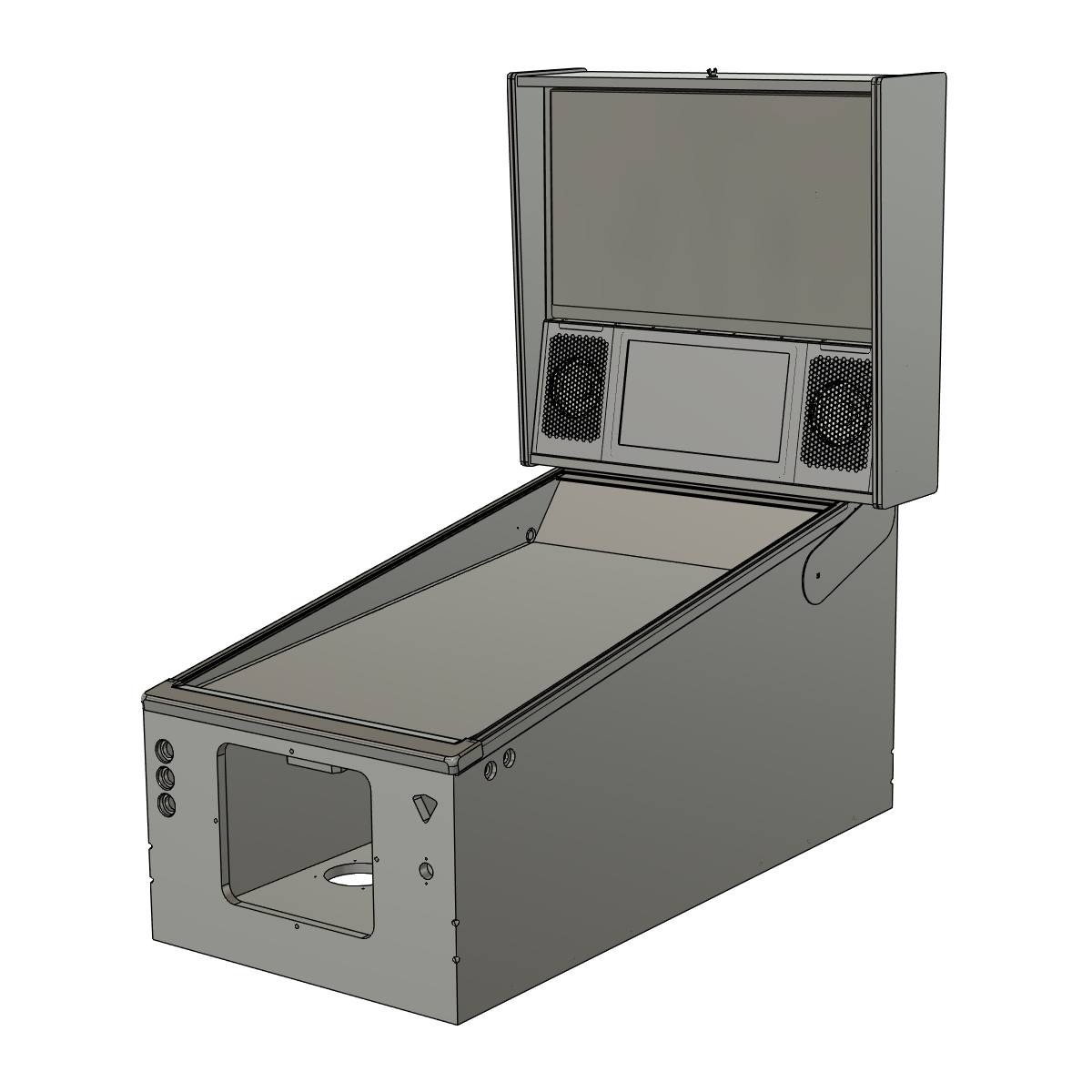

CAD rendering of the plywood cabinet.
The plywood pieces were glued togetter with the addition of some stainless steel screws. Wood fill was used to cover the screws and other holes and the cabinet was sanded and prepped. Once the prep work was completed the cabinet was given an under coating of KILZ 2 All-Purpose primer (white) applied with a roller and brush. The top coats are Behr Ultra Semi-Gloss (black) applied with an handheld HVLP paint sprayer.

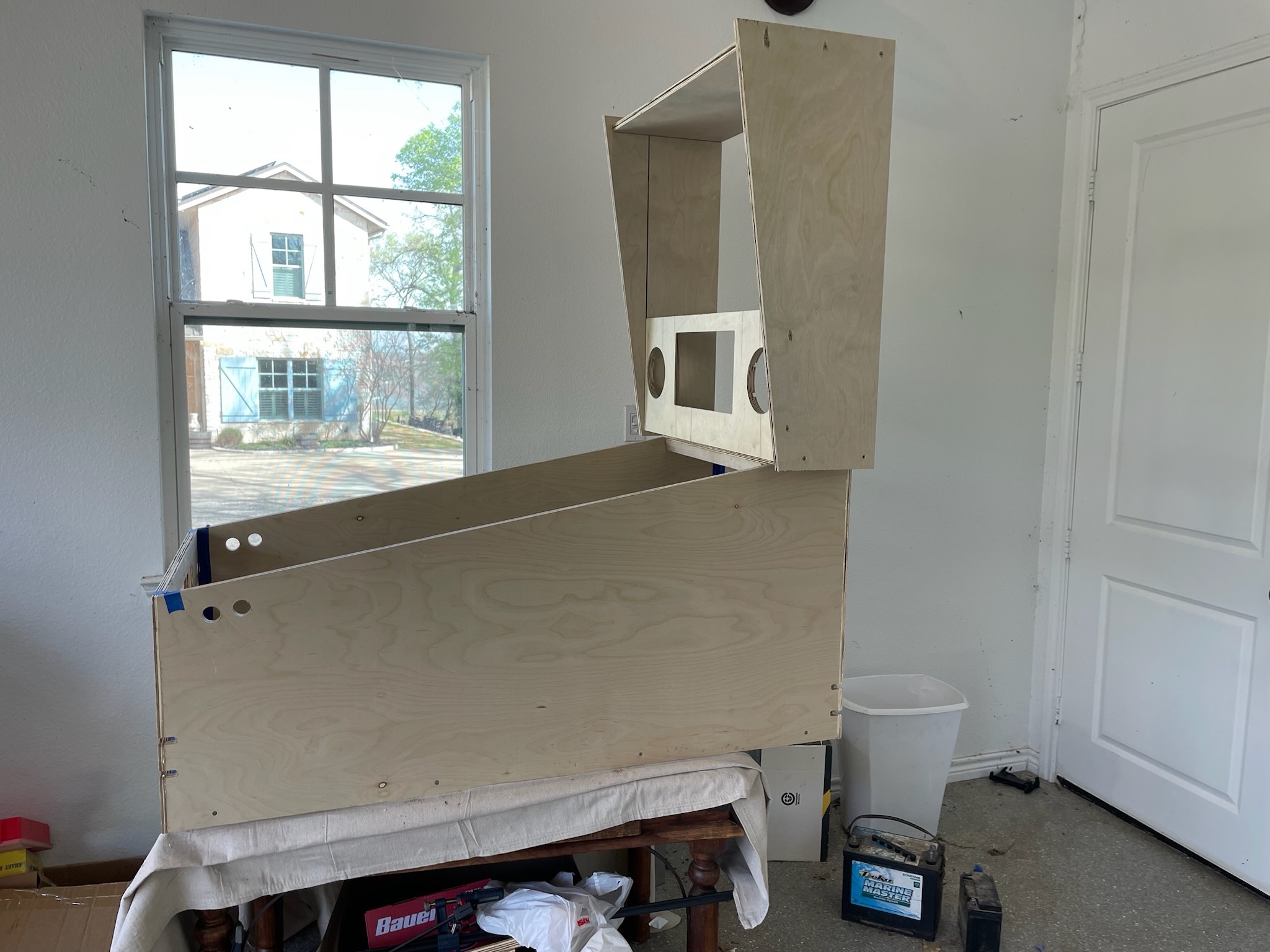

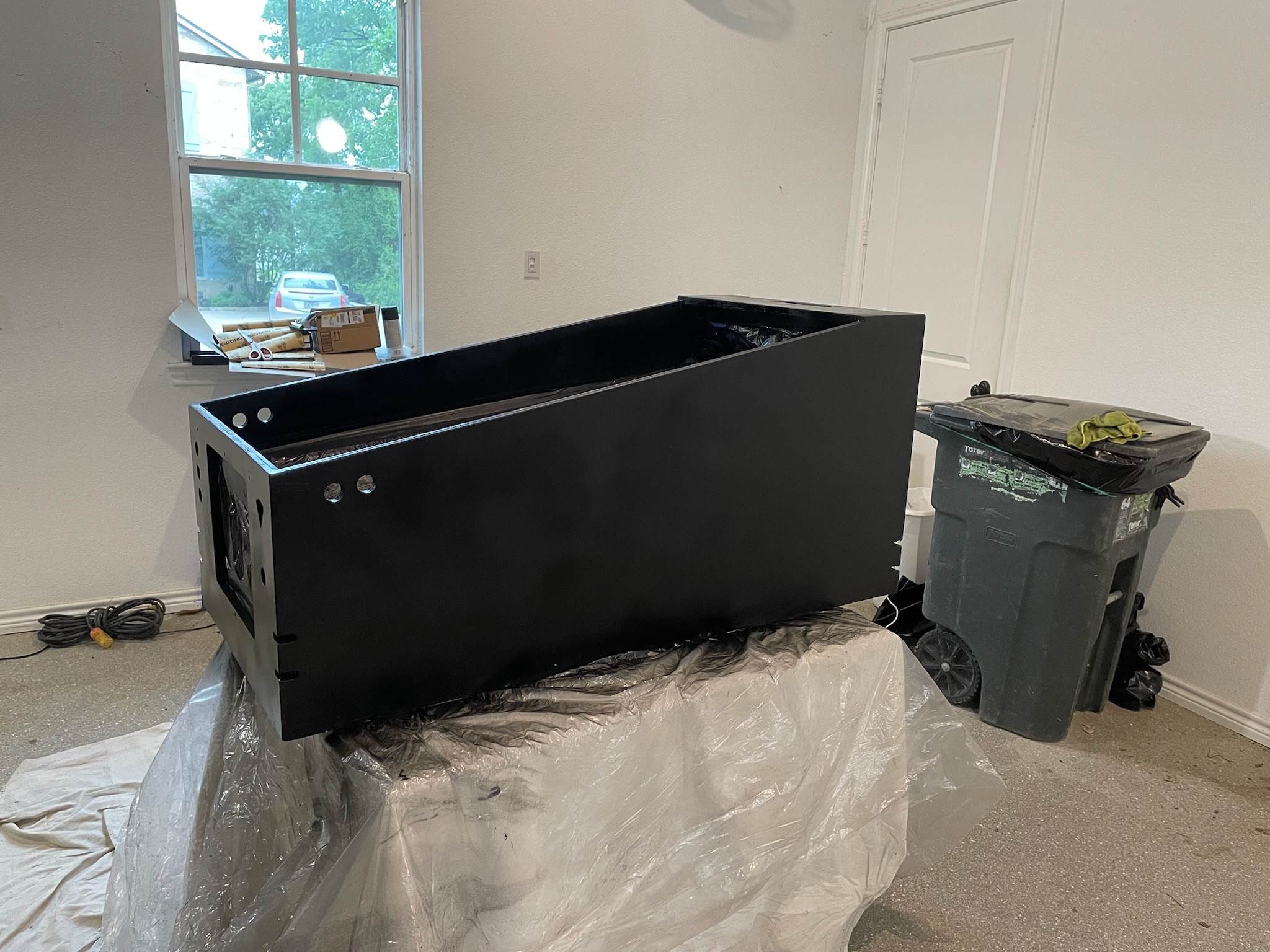

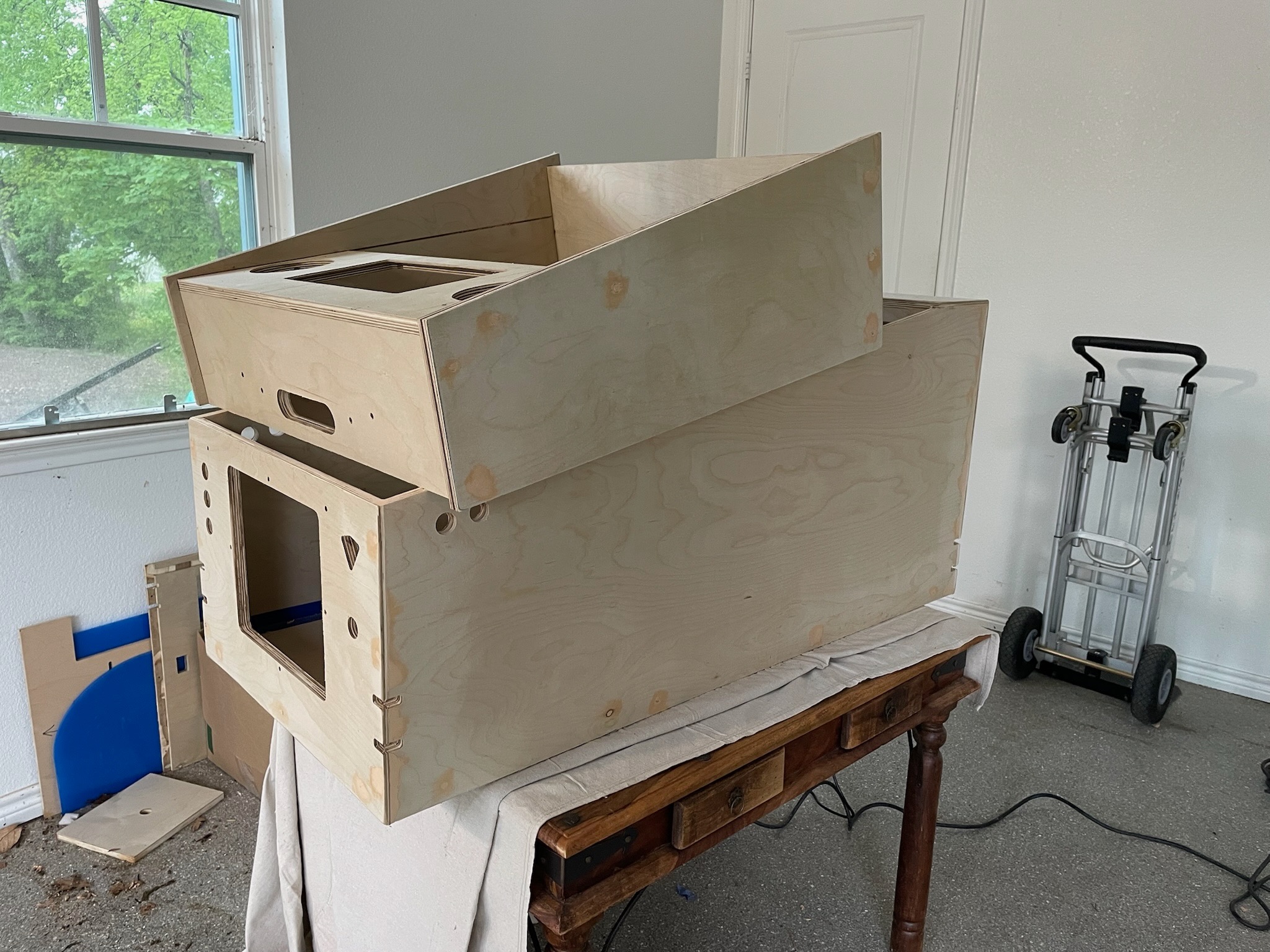

The cabinet in various stages: On the left, the cabinet and backbox assembled. Middle, the cabinet prepared for primer undercoating. Right, Primer and first overcoat added.
